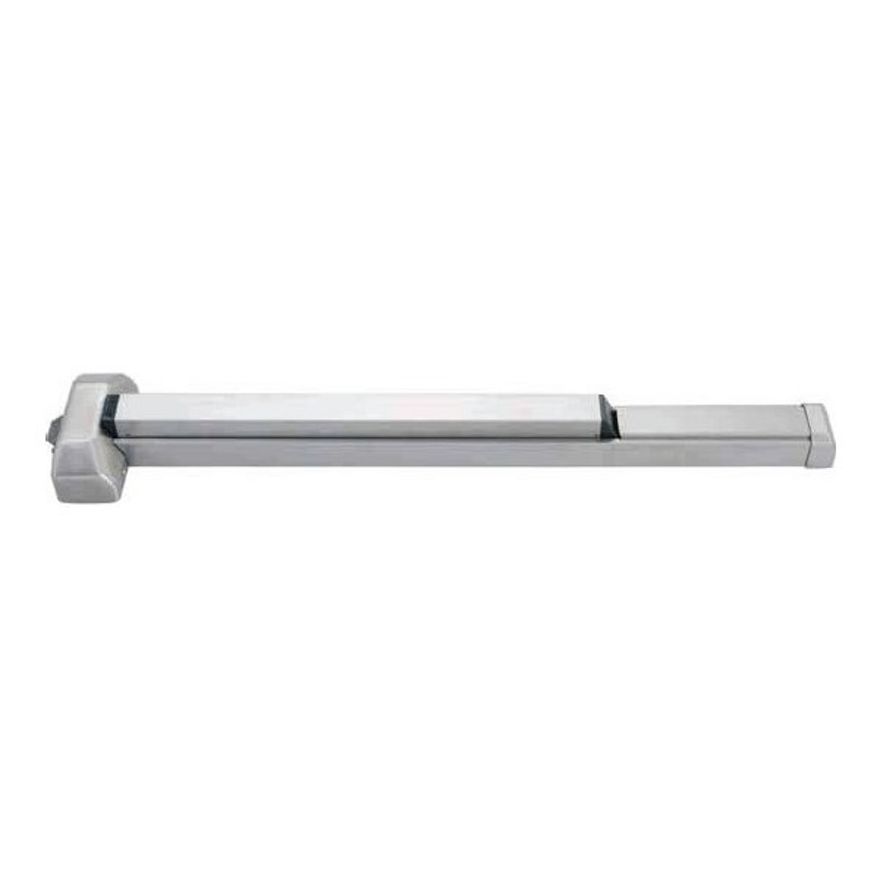

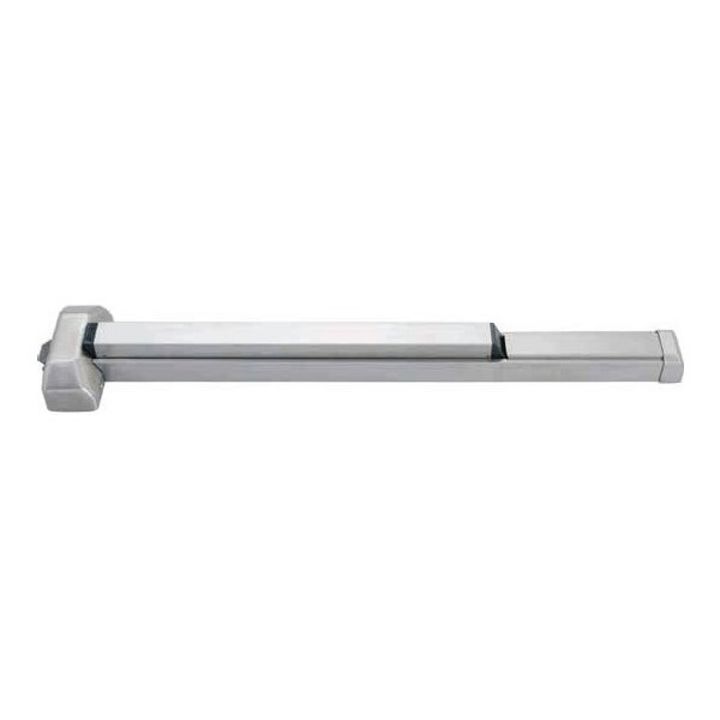

7100 Series

อุปกรณ์ประตูคานผลัก

Material : Push bar - Steel pressed or stainless steel pressed. Head Cover - Steel pressed or stainless steel pressed. Spring - Stainless steel.
Latch bolt : 5/8” throw, stainless steel.
Dead latch bolt 9/16”, steel.
Strike For 5/8” stop.
Projection 2-1/2” maximum, 1-7/8” apressed.
Reversible Non-handed, reversible for all functions and trims.
For door 1-3/4”, thick of wood or metal door. Specify thickness if other than 1-3/4”.
Door width 3’ standarad for door width of 2’-8” to 3’-0”; 4’ standarad for door width of 3’-8” to 4’-0
Stile 4-1/4” minimum
Mounting height : 40-5/16” from CL to finished floor recommended.
Mounting Furnished standard with sheet metal & machine screws or SNB as option.
Cylinders : For trim, knob, lever & thumb-piece type, “Schlage C” key way.
Dogging 1/4 turn, hex key dogging on non-frie labeled device.
UL listed : For “Panic Hardware” and “UL” , Labelled (3 hours) frie exit hardware. ANSI A156.3 Grade 1
Operation : Inside by slight pressure on any point of the push bar all time.
Models Rim type & vertical rod available.
